$35.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 277 VAC | 30 A | 1.7" | 1.5" | 2.0" | 0.28 lbs |
| Voltage | 277 VAC |
| Amp/H | 30 A |
| Length | 1.7" |
| Width | 1.5" |
| Height | 2.0" |
| Weight | 0.28 lbs |

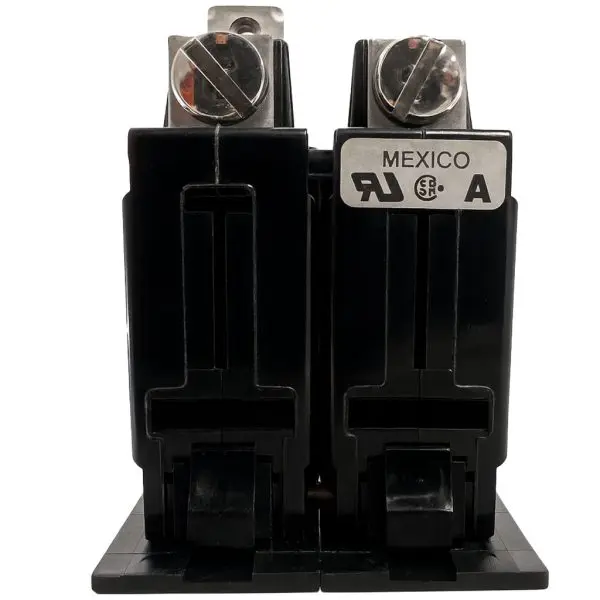

Genuine Cutler-Hammer (Eaton) hydraulic-magnetic circuit breaker. “Delay 63” provides long, inverse-time response for high-inrush motor and transformer loads with temperature-stable, trip-free protection.
| Parameter | Detail |
|---|---|
| Manufacturer | Cutler-Hammer (Eaton) |
| Series / style | Hydraulic-magnetic (Heinemann/C-Series form factor) |
| Poles | 2 poles (ganged; two-pole break) |
| Current rating (In) | 30 A |
| Voltage ratings | 480Y/277 V AC (50/60 Hz) • 80 V DC |
| Delay curve | Delay 63 — long motor-start curve; holds 100% In; trips at ≥ 125% In within published time-band |
| Trip technology | Hydraulic-magnetic (inverse-time; temperature-stable; trip-free) |

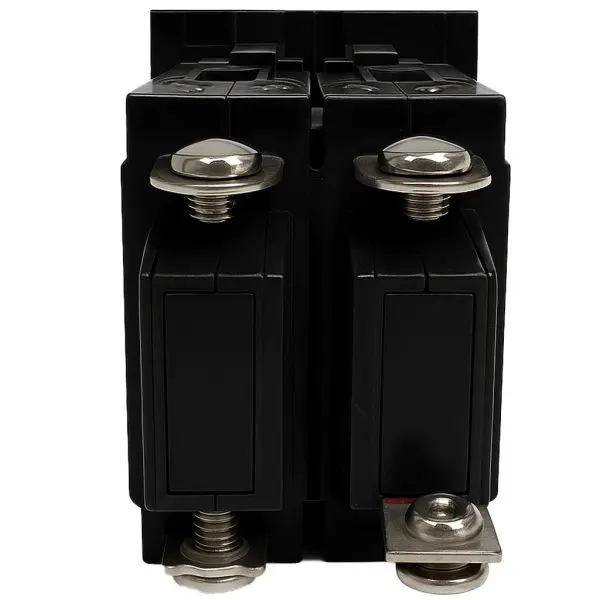

| Terminations | Screw or stud lugs (Line & Load per pole; per build) |

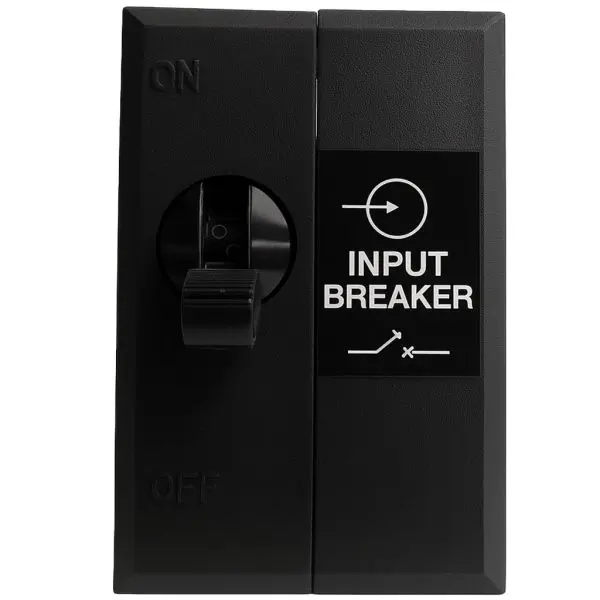

| Actuator | Toggle handle (ganged poles) |
| Mounting | Panel-mount; standard C-style bezel inserts |
| Dimensions (H × W × L) | 2.0 in × 1.5 in × 1.7 in |
| Weight | 0.28 lb |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL / cUL (supplementary protector) • IEC/EN 60934 / 60947-2 (per unit marking) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected; curve verified; intact labels; ready to install | 90-Day |
