$120.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 690 VAC | 150 A | 4.72" | 6.14" | 6.69" | 8.55 lbs |
| Voltage | 690 VAC |
| Amp/H | 150 A |
| Length | 4.72" |
| Width | 6.14" |
| Height | 6.69" |
| Weight | 8.55 lbs |

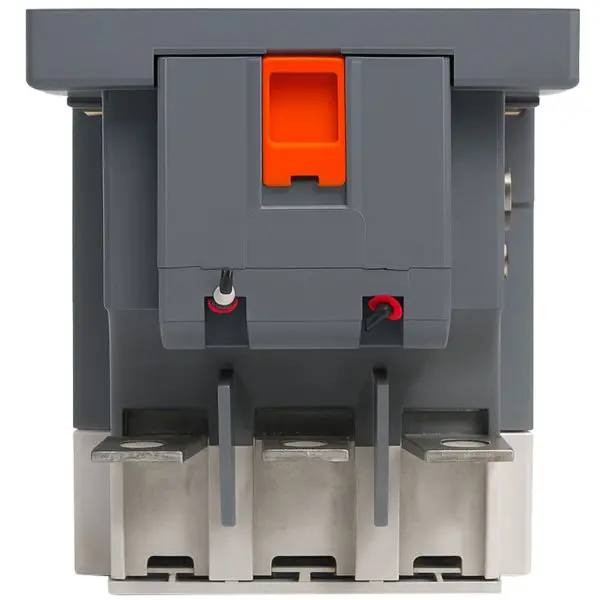

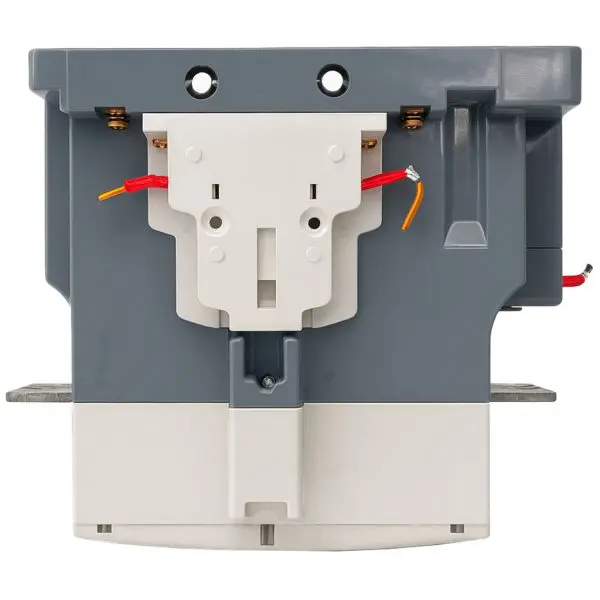

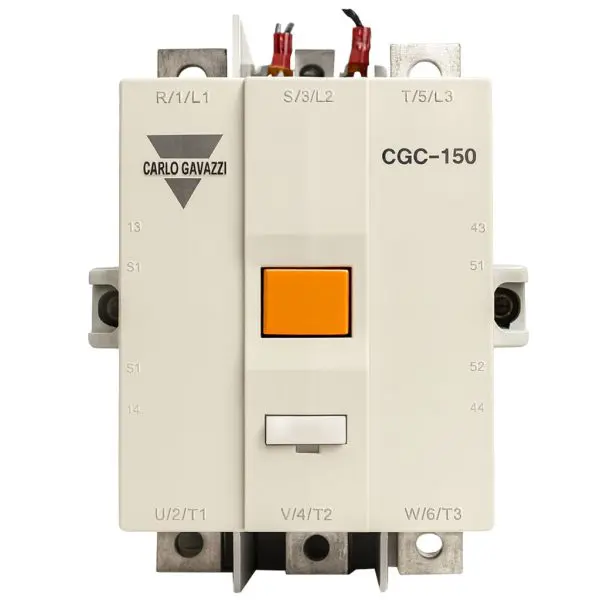

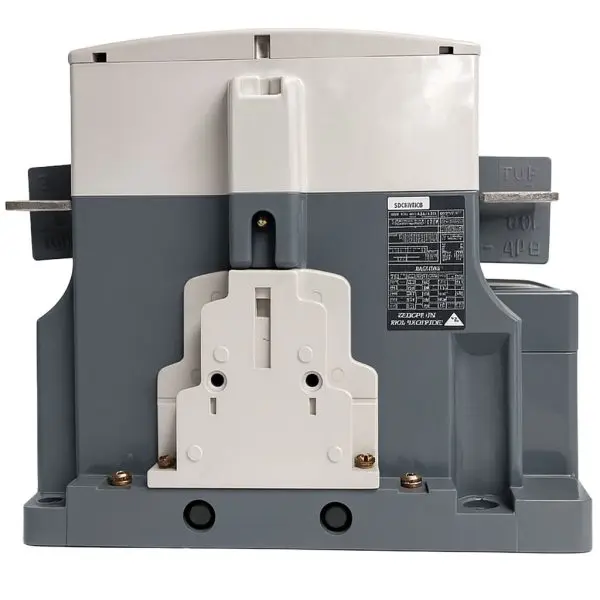

Genuine Carlo Gavazzi CGC-150A power contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Part number | CGC-150A (example coil variant: CGC-150-AC440-575V) |
| Utilization category | AC-3 (motor duty); AC-1 listed below |
| Rated operational current (AC-3) | 150 A (frame) |
| Rated operational current (AC-1) | 200 A |
| Rated operational voltage (Ue) | Up to 690 V AC |
| Control circuit (coil) | Common-coil design (AC/DC under DC ≤ 220 V); example fitted coil: 440–575 V AC |
| Poles & auxiliaries | 3 main poles; auxiliary contacts per build (field-add blocks available) |
| Terminations | Bolt-lug / threaded main terminals (finger-safe covers available) |
| Mounting | Panel mount; mechanical interlock and latch modules optional |
| Dimensions (H × W × D) | 6.69 in × 6.14 in × 4.72 in |
| Weight | ≈ 8.55 lb |
| Compliance | IEC/EN 60947-4-1; UL/CSA as marked (per unit) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, coil verified to spec; terminals and contacts checked; ready to install | 90-Day |
