$19.98
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 277 V | N/A | 20 A | 0.8" | 3.7" | 2.5" | 0.3 lb |
| Voltage | 277 V |
| WPC | N/A |
| Amp/H | 20 A |
| Length | 0.8" |
| Width | 3.7" |
| Height | 2.5" |
| Weight | 0.3 lb |
Genuine Carling C-Series hydraulic-magnetic circuit breaker, cleaned, inspected, and shop-tested. Long-delay “26” curve supports motor/high-inrush loads with precise, temperature-stable protection.
| Parameter | Detail |
|---|---|
| Manufacturer | Carling Technologies |
| Series / style | C-Series hydraulic-magnetic, panel-mount |
| Poles | 2 poles (two-pole break, ganged) |
| Current rating (In) | 20 A |
| Voltage ratings | Up to 277 V AC (50/60 Hz) • up to 80 V DC |
| Delay curve | Delay 26 — long-time motor/high-inrush (inverse-time) |
| Trip technology | Hydraulic-magnetic (temperature-stable; trip-free) |

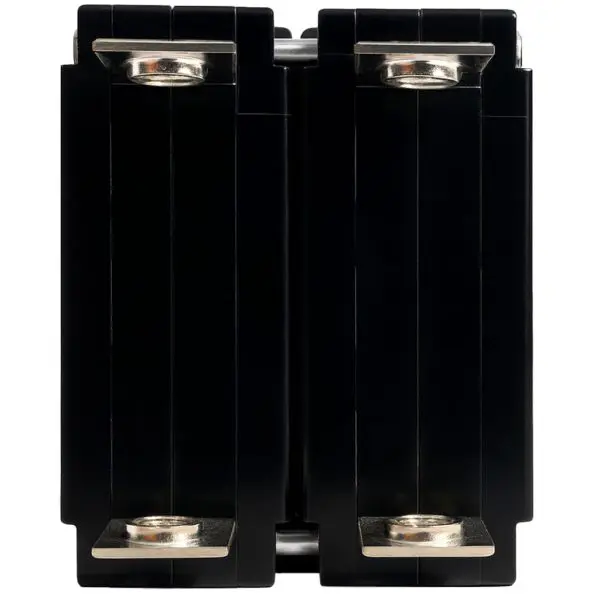

| Terminations | Screw 10-32 back-connect (C-Series); other stud/QC options by build code |

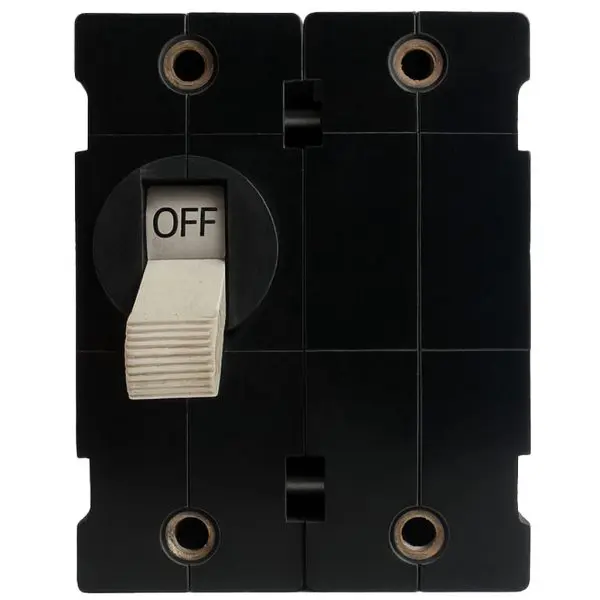

| Actuator | Handle / toggle (rocker variants exist) |
| Mounting | Panel-mount; 6-32 threaded inserts (standard C-Series bezel) |
| Dimensions (H × W × D) | 63.5 mm × 94.0 mm × 19.2 mm (2.50 in × 3.70 in × 0.76 in) |
| Weight | 0.30 lb |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL/cUL; IEC/EN 60947-2 (per variant; as marked) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, Delay-26 function verified; intact labels; ready to install | 90-Day |
