$63.29
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 250 V | 40 A | 2.0" | 1.1" | 1.6" | 0.2 lb |
| Voltage | 250 V |
| Amp/H | 40 A |
| Length | 2.0" |
| Width | 1.1" |
| Height | 1.6" |
| Weight | 0.2 lb |

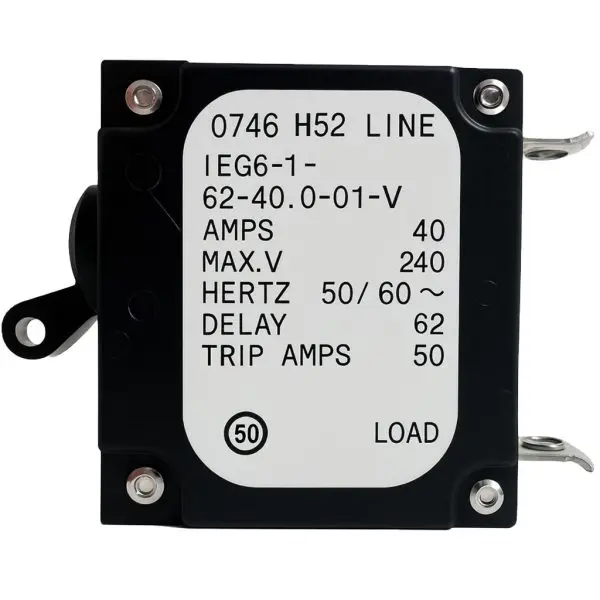

Genuine Sensata/Airpax hydraulic-magnetic circuit breaker, shop-tested and ready for service. Delay “62” curve provides high-inrush tolerance with temperature-stable, trip-free protection.
| Parameter | Detail |
|---|---|
| Manufacturer | Sensata / Airpax |
| Series / style | IEG / IEL hydraulic-magnetic, panel-mount |
| Poles | 1 pole (single-pole break) |
| Current rating (In) | 40 A |
| Voltage ratings | 250 V AC (50/60 Hz) • 80 V DC |
| Delay curve | Delay 62 — motor/high-inrush (inverse-time) |
| Trip technology | Hydraulic-magnetic (temperature-stable; trip-free) |

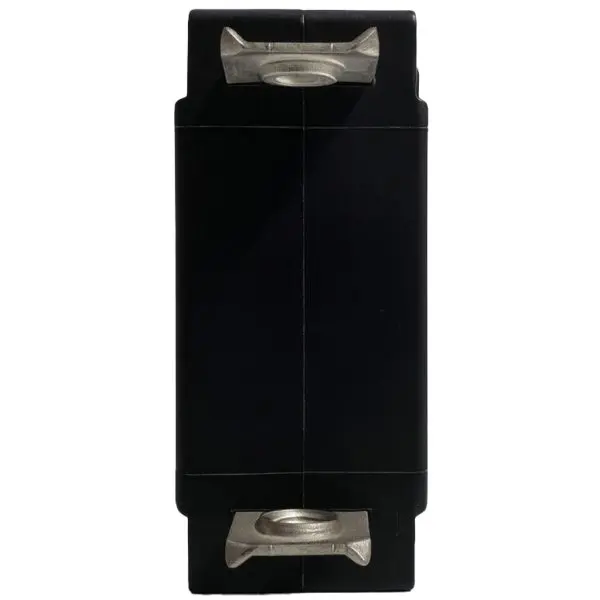

| Terminations (“2-ports”) | Two screw terminals — Line & Load |

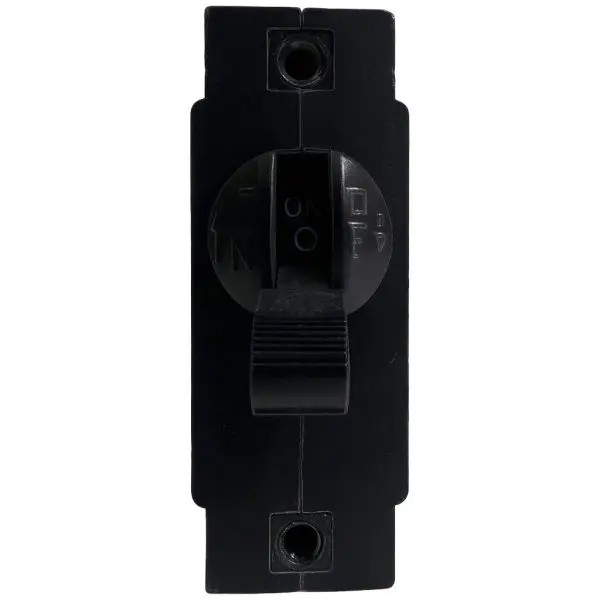

| Actuator | Toggle / lever |
| Mounting | Panel mount; two #6-32 mounting holes |
| Dimensions (H × W × D) | 42.16 mm × 26.67 mm × 50.80 mm (1.6 in × 1.1 in × 2.0 in) |
| Weight | 0.20 lb (≈ 0.09 kg) |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL1077 • CSA • IEC (series-dependent; as marked) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90-Day |
