Manufacturer
OEM Part Number
GPS Part Number
Categories
$55.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 250 V | 50 A | 2.0" | 1.1" | 1.7" | 0.2 lb |
| Voltage | 250 V |
| Amp/H | 50 A |
| Length | 2.0" |
| Width | 1.1" |
| Height | 1.7" |
| Weight | 0.2 lb |

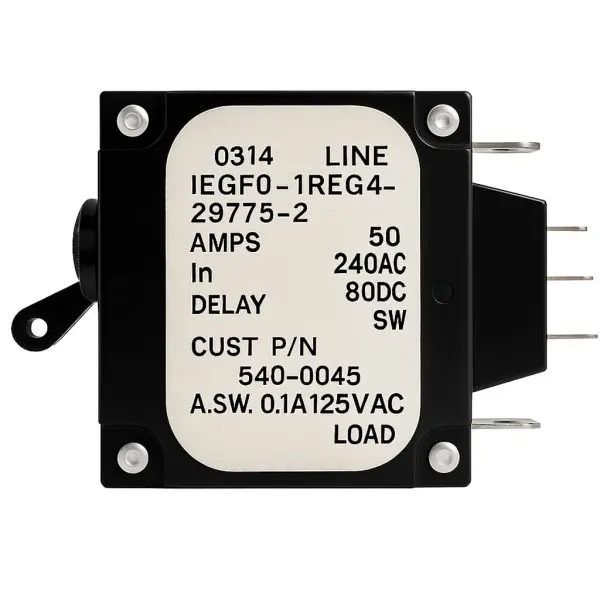

Sensata/Airpax single-pole unit built in the I*L/IE* family footprint. “Delay SW” denotes switch-only configuration (no protective trip element). Use where you need panel-mount power switching without hydraulic-magnetic trip.
| Parameter | Detail |
|---|---|
| Manufacturer | Sensata / Airpax |
| Series / style | IUL / IEL footprint (panel-mount toggle) |
| Poles | 1 pole (single-pole break) |
| Current rating | 50 A |
| Rated voltages | 250 V AC (50/60 Hz) • 80 V DC |
| Delay / curve | SW — Switch-Only (no hydraulic-magnetic trip) |
| Trip technology | None (non-protective switch) |
| Terminations | Two screw terminals — Line & Load (2-ports) |

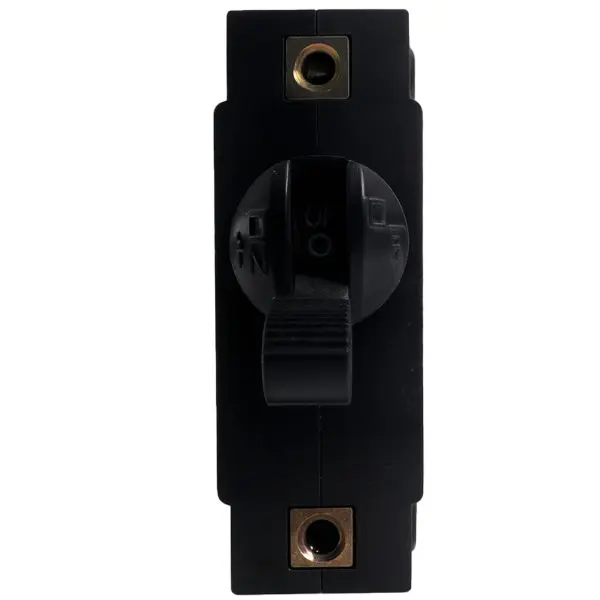

| Actuator | Toggle / lever |
| Mounting | Panel mount; two #6-32 mounting holes |
| Dimensions (H × W × D) | 42.2 mm × 26.7 mm × 50.8 mm (1.66 in × 1.05 in × 2.00 in) |
| Weight | 0.20 lb |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | As marked on unit (switch-only variant) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected; toggle action verified; continuity checked | 90-Day |
