$35.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 250 V | 30 A | 2.50" | 1.90" | 0.75" | 0.2 lb |
| Voltage | 250 V |
| Amp/H | 30 A |
| Length | 2.50" |
| Width | 1.90" |
| Height | 0.75" |
| Weight | 0.2 lb |

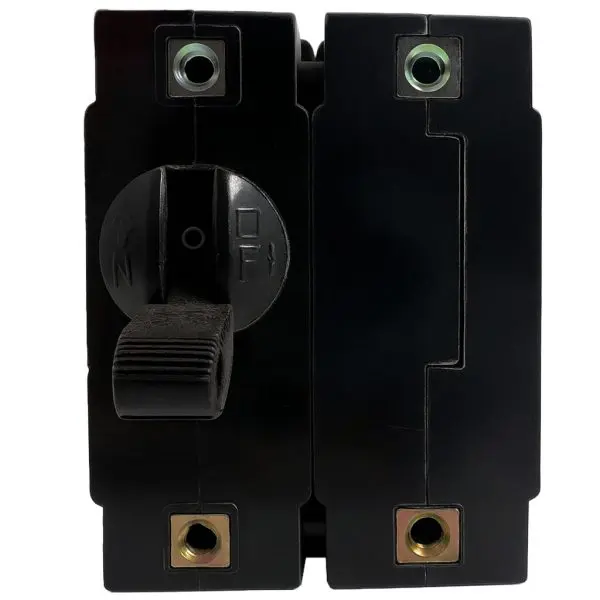

Genuine Sensata/Airpax hydraulic-magnetic circuit breaker, shop-tested and ready for service. Delay “63” curve provides motor/high-inrush tolerance with temperature-stable, trip-free protection.

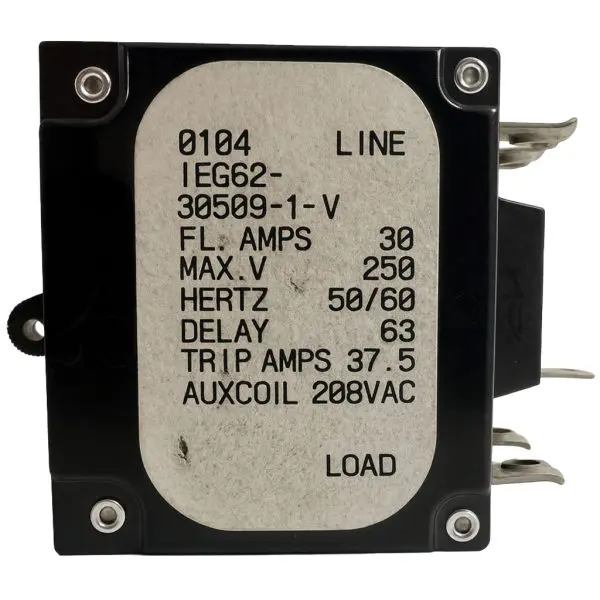

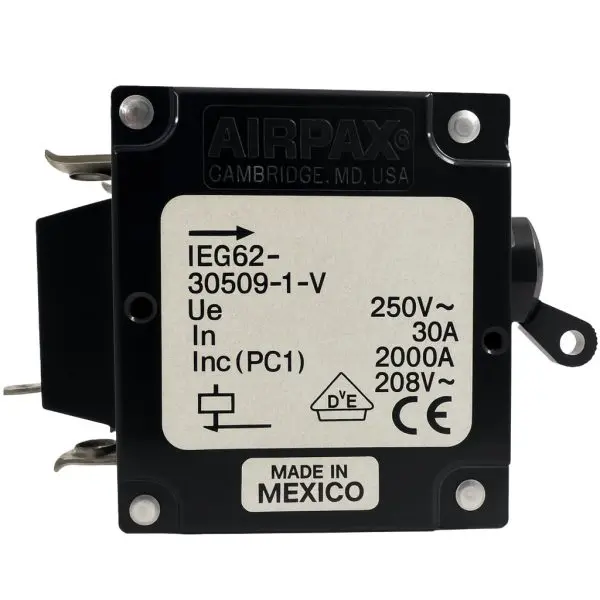

| Parameter | Detail |
|---|---|
| Manufacturer | Sensata / Airpax |
| Series / style | IEL / IEG hydraulic-magnetic, panel-mount |
| Poles | 1 pole (single-pole break) |
| Current rating (In) | 30 A |
| Voltage ratings | 250 V AC (50/60 Hz) • 80 V DC |
| Delay curve | Delay 63 — long motor/high-inrush (inverse-time) |
| Trip technology | Hydraulic-magnetic (temperature-stable; trip-free) |

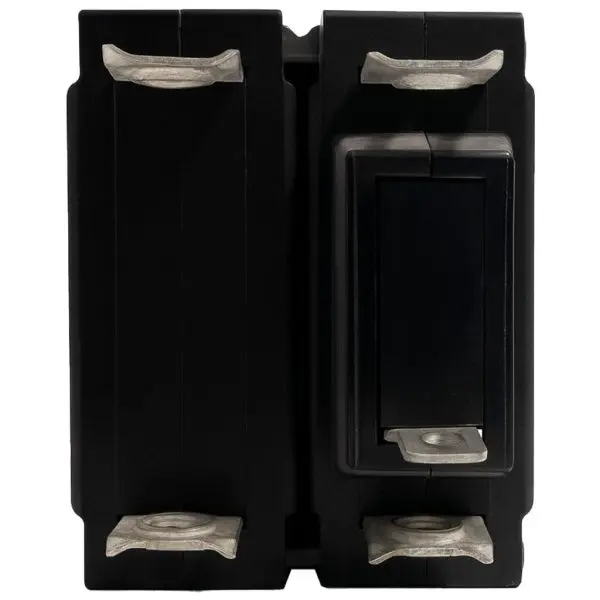

| Terminations (“2-ports”) | Two screw terminals — Line & Load |
| Actuator | Toggle / lever |
| Mounting | Panel mount; two #6-32 mounting holes |
| Dimensions (H × W × D) | 19.05 mm × 47.22 mm × 63.24 mm (0.75 in × 1.86 in × 2.49 in) |
| Weight | 0.20 lb |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL1077 • CSA • IEC (series-dependent; as marked) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
