$188.65
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 320 A | 7.7" | 5.7" | 7.9" | 13 – 14 lb |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 320 A |
| Length | 7.7" |
| Width | 5.7" |
| Height | 7.9" |
| Weight | 13 – 14 lb |

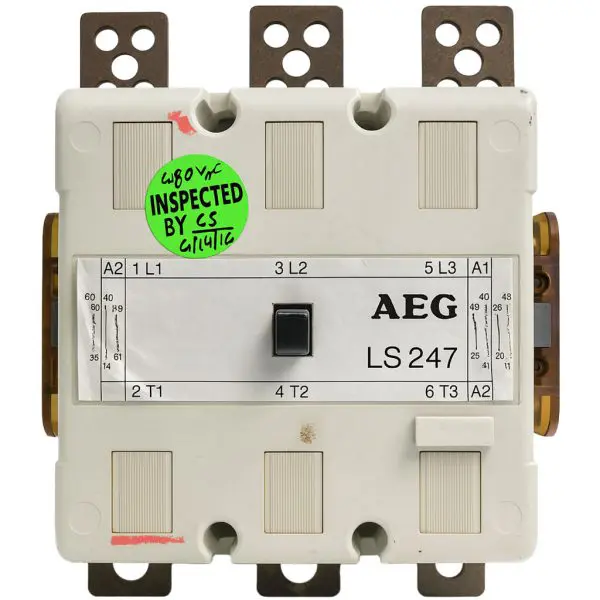

Genuine AEG LS-series power contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | AEG |

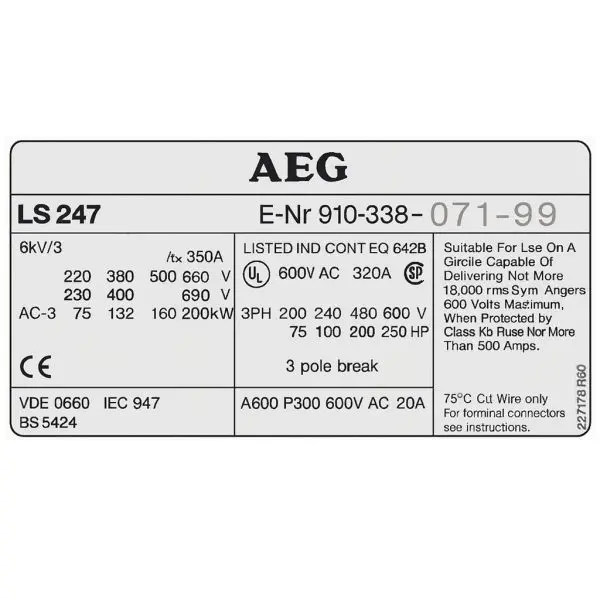

| Model / code | LS247 • E-Nr 910-338-071-99 (LS247.22 — 110–115 V AC coil) |
| Rated operational voltage (Ue) | Up to 600 V AC |
| Rated current / frame | 320 A • 3-pole break |
| AC-3 motor power (reference) | ≈ 132 kW @ 400/415 V |
| Coil (control circuit) | 110–115 V AC, 50/60 Hz (suffix “-99” mapping) |
| Poles & auxiliaries | 3 main poles; auxiliary block per build |
| Terminations | Screw / bolt-lug style (field lugs typically separate) |
| Mounting | Panel mount; mechanical interlock kits available |
| Dimensions (H × W × D) | 200.7 mm × 144.8 mm × 195.6 mm (7.90 in × 5.70 in × 7.70 in) |
| Weight | ≈ 6.3 kg (≈ 13.9 lb) |
| Compliance | IEC/EN 60947-4-1; UL/CSA as marked (per unit) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
