$98.98
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 225 A | 7.15" | 5.40" | 6.75" | 8.88 lb |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 225 A |
| Length | 7.15" |
| Width | 5.40" |
| Height | 6.75" |
| Weight | 8.88 lb |

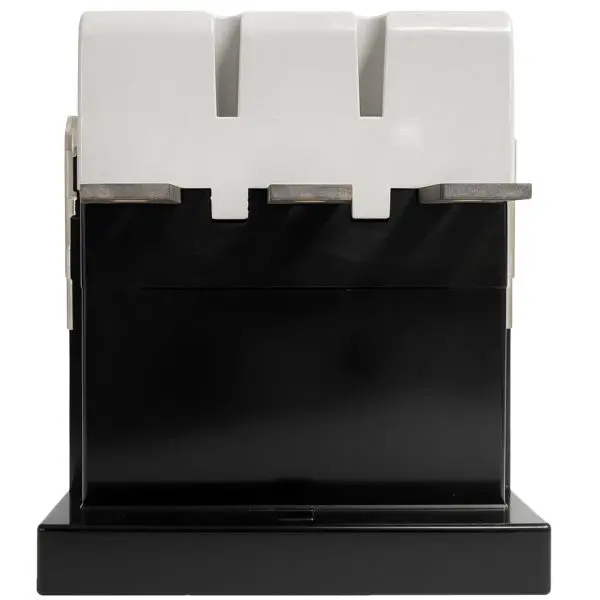

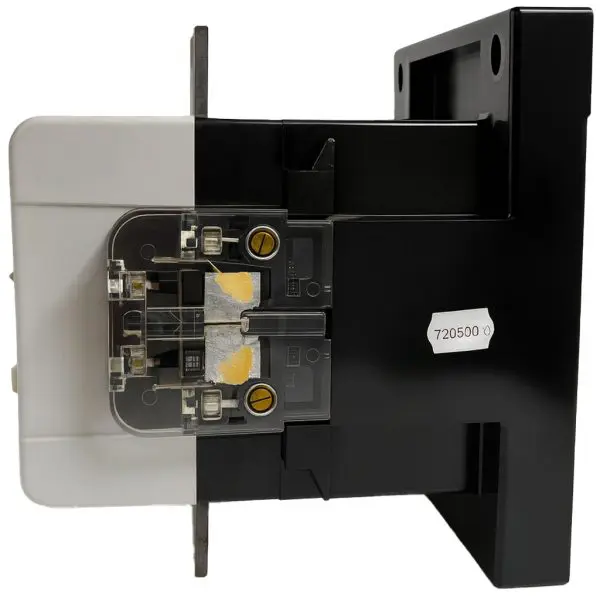

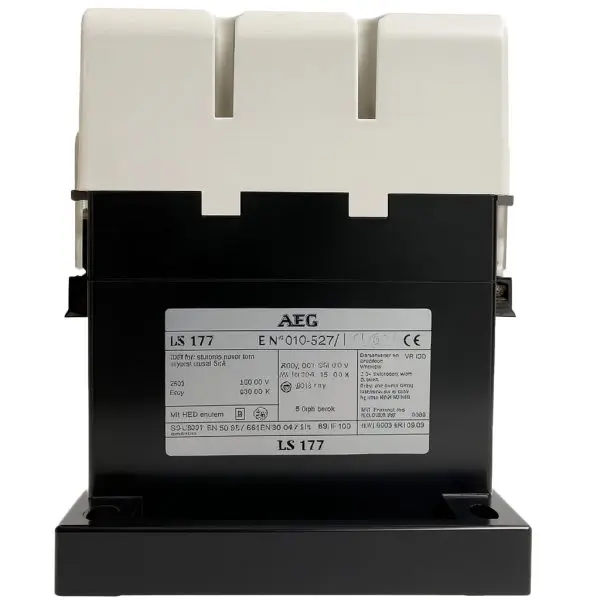

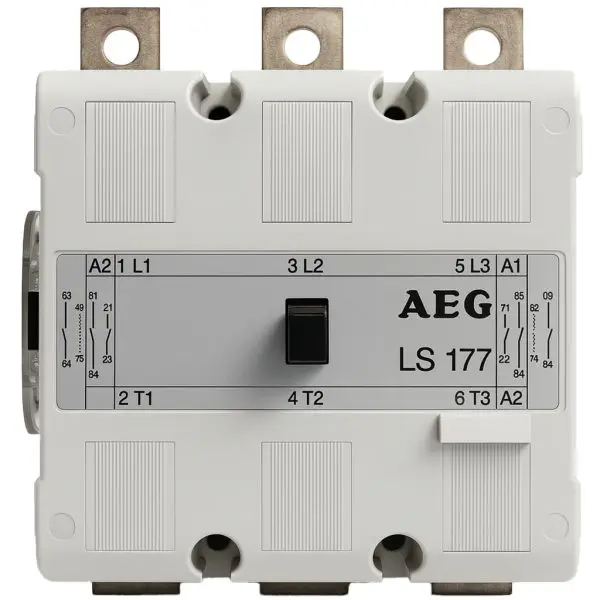

Genuine AEG LS-series power contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.

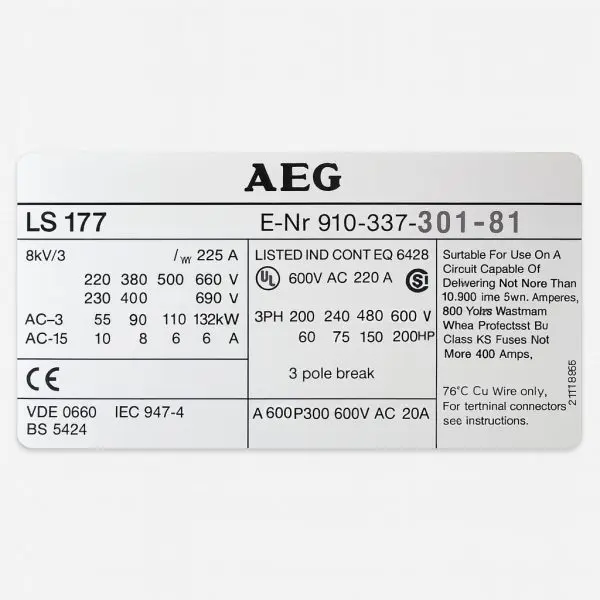

| Parameter | Detail |
|---|---|
| Manufacturer | AEG |
| Model / code | LS 177 • E-Nr 910-337-301-81 |
| Impulse withstand | 8 kV / 3 |
| Conventional free-air thermal current (Ith) | 225 A |
| AC-3 motor power ratings | 55 kW @ 220/230 V • 90 kW @ 380/400 V • 110 kW @ 500 V • 132 kW @ 660/690 V |
| AC-15 (aux contact rating) | 10 A @ 220 V • 8 A @ 380/400 V • 6 A @ 500/660/690 V |
| UL / CSA rating | LISTED IND CONT EQ 642B • 600 V AC • 220 A |
| 3-phase HP rating (UL) | 60 HP @ 200 V • 75 HP @ 240 V • 150 HP @ 480 V • 200 HP @ 600 V |
| Poles / breaking | 3 pole break |
| Auxiliary contact designation | A600 • P300 • 600 V AC • 20 A |
| Wire / terminals note | 75 °C Cu wire only. For terminal connectors see instructions. |
| Protection note | Suitable for use on a circuit capable of delivering not more than 10,000 rms symmetrical amperes, 600 V maximum, when protected by Class K5 fuses rated not more than 400 A. |
| Standards | CE • VDE 0660 • IEC 947-4 • BS 5424 |
| Rated operational voltage (Ue) | Up to 690 V AC (per nameplate voltage rows) |
| Coil (control circuit) | 240–280 V AC, 50/60 Hz (E-Nr suffix “-81”) |
| Terminations / mounting | Screw / lug style; panel mount |
| Dimensions (H × W × D) | 171.4 mm × 136.5 mm × 181.0 mm (6.75 in × 5.40 in × 7.15 in) |
| Weight | ≈ 4.03 kg (≈ 8.88 lb) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
