$630.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 600 V | 800 A | 4.1" | 7.10" | 13.40" | 15 lbs |
| Voltage | 600 V |
| Amp/H | 800 A |
| Length | 4.1" |
| Width | 7.10" |
| Height | 13.40" |
| Weight | 15 lbs |

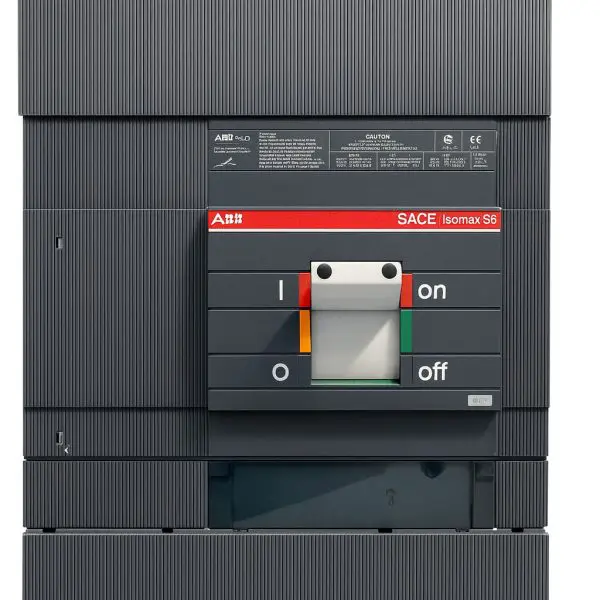

Genuine ABB SACE Isomax S6 unit professionally removed from service, then cleaned, inspected, and shop-tested. A like-for-like swap to restore uptime fast.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |

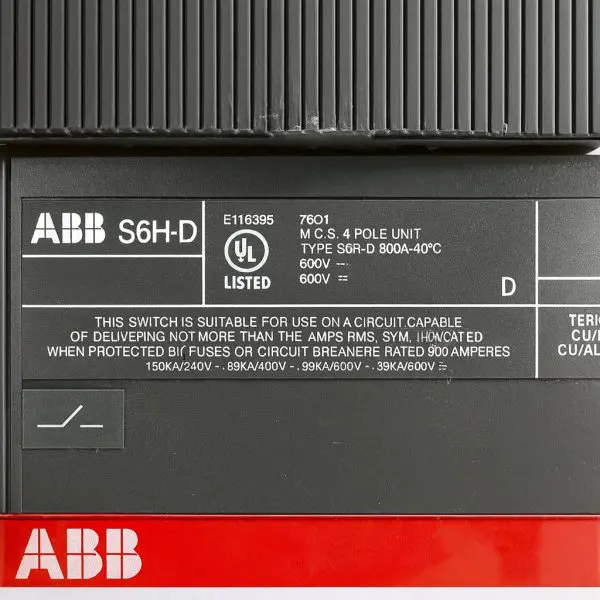

| Model / family | SACE Isomax S6H-D — 4-pole |
| Rated current (In) | 800 A (common S6H-D 4P build; S6 frame also available at 600 A) |
| Rated operational voltage (Ue) | Up to 600 V AC (UL); up to 500 V DC (frame capability) |
| Interrupting capacity | 65 kA @ 480 V AC (H-level) |
| Trip / function | Thermal-magnetic LI (long-time & instantaneous) or non-automatic “D” switch variant per label |
| Poles | 4 |

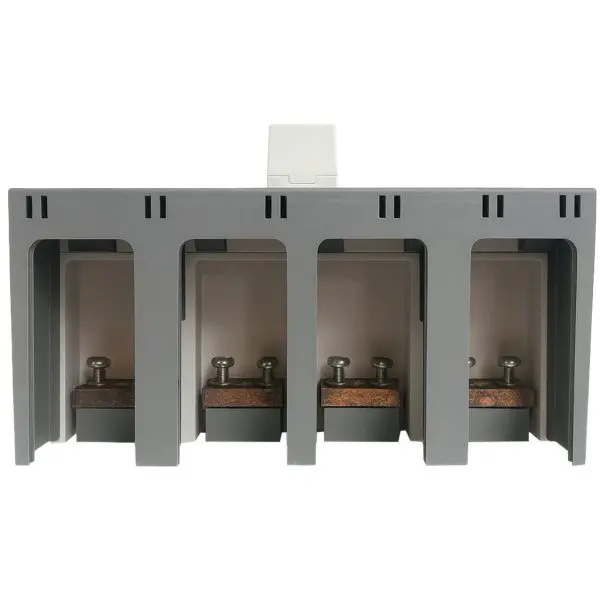

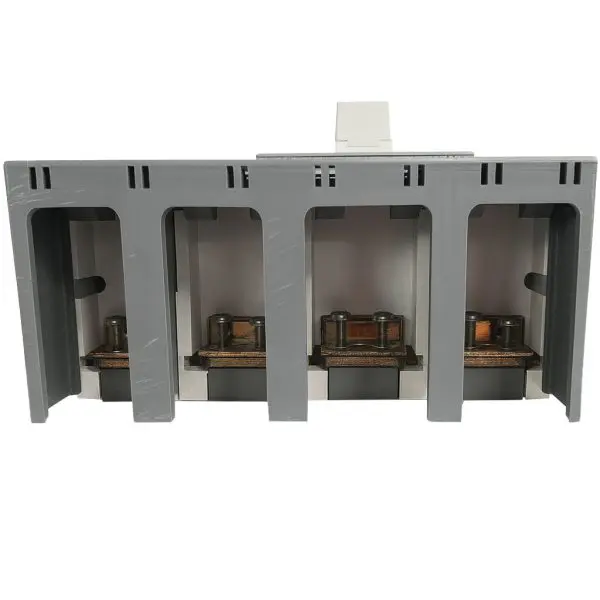

| Terminations | Bolt-on; load-side lugs; reverse-feed suitable (per S6 listings) |
| Mounting | Fixed (panel/bus), molded-case MCCB |
| Dimensions (H × W × D) | ≈ 339 mm × 180 mm × 103.5 mm (13.35 in × 7.09 in × 4.07 in) |
| Weight | ~7 kg (~15 lb, fixed 4-pole) |
| Compliance | IEC 60947-2; UL 489 (MCCB) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
