$428.64
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 600 V | 400 A | 4.07" | 5.51" | 10" | 13 lbs |
| Voltage | 600 V |
| Amp/H | 400 A |
| Length | 4.07" |
| Width | 5.51" |
| Height | 10" |
| Weight | 13 lbs |

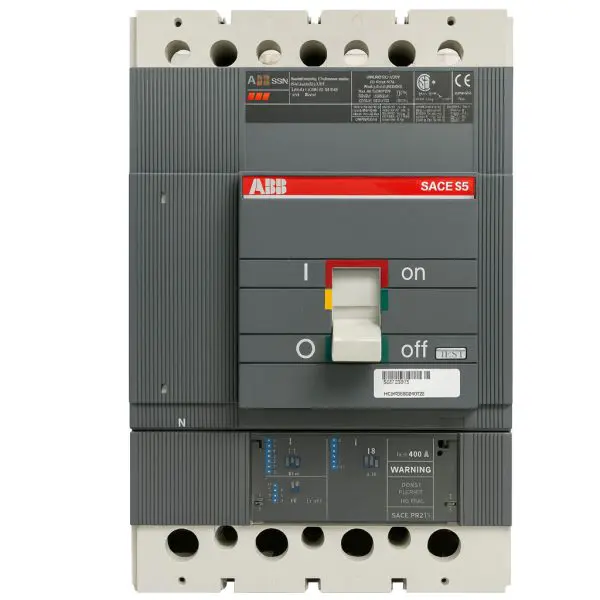

Genuine ABB SACE Isomax S5N breaker professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model / family | SACE Isomax S5N • 4-Pole |
| Frame / rated current (In) | 400 A frame • 400 A trip (typical) |
| Rated operational voltage (Ue) | 600 V AC (500 V DC max, per variant) |
| Interrupting / breaking capacity | 35 kA @ 480 V AC (also listed 35 kA @ 415 V) |
| Trip unit type | Thermal-magnetic, non-interchangeable • LI (Long-time + Instantaneous) |
| Poles | 4 Poles (neutral configuration per specific unit) |
| Terminations | Bolt-On (terminals often sold separately) |
| Mounting | Fixed, panel/switchgear; suitable for reverse-feed (per listing) |
| Dimensions (H × W × D) | ≈ 254 mm × 140 mm × 103 mm (≈ 10.0 in × 5.51 in × 4.07 in) |
| Weight | ≈ 5.9 kg (≈ 13 lb) |
| Standards / approvals | IEC 60947-2; UL/CSA as marked (per unit) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
