$424.26
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 600 V | 400 A | 4.1" | 7.5" | 10" | 16.3 lbs |
| Voltage | 600 V |
| Amp/H | 400 A |
| Length | 4.1" |
| Width | 7.5" |
| Height | 10" |
| Weight | 16.3 lbs |

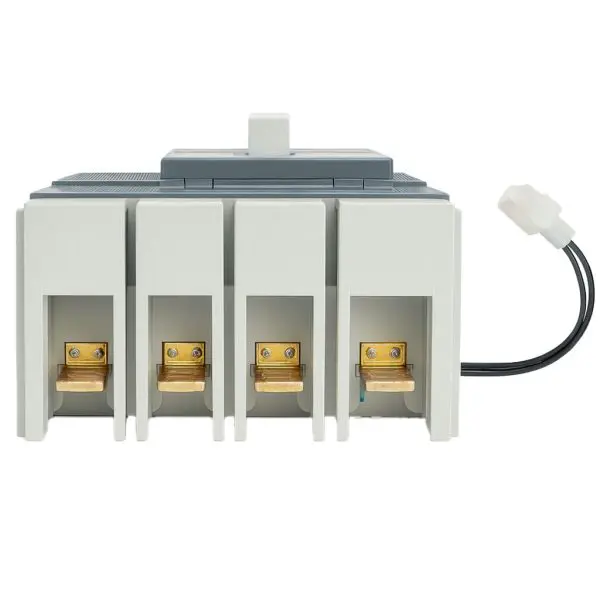

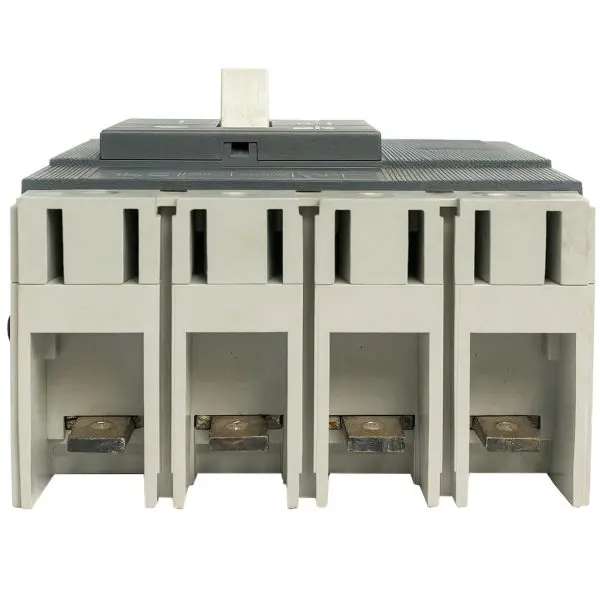

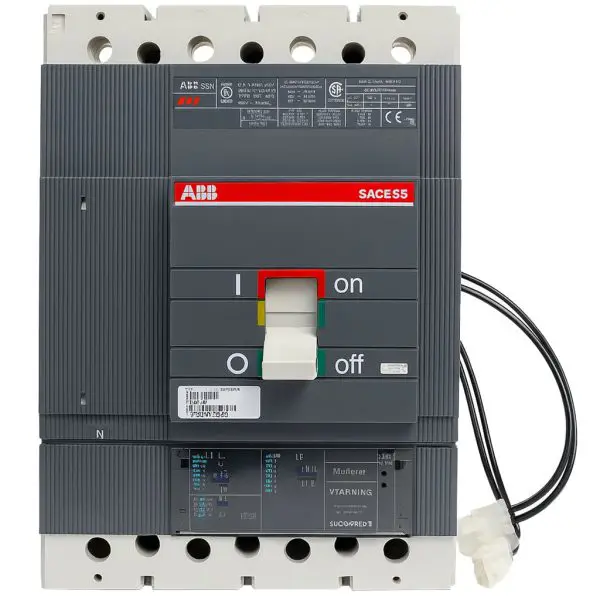

Genuine ABB SACE S5N molded-case circuit breaker professionally removed from service, then cleaned, inspected, and shop-tested.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model / family | SACE S5N — 4-pole (Issue Nº AD-9179) |
| Rated current (In) | 400 A (typical S5N 4-pole build with 400 A trip) PR211/thermal-magnetic variants exist; verify against the unit’s label if different. |
| Rated voltage (Ue) | 600 VAC / 500 VDC |
| Interrupting capacity (AIC) | 65 kA @ 240 VAC • 35 kA @ 480 VAC • 22 kA @ 600 VAC |
| Trip unit | PR211 electronic, LI (Long-time & Instantaneous) Non-interchangeable trip; some listings describe “thermal-magnetic LI” but PR211 builds are common on S5N. |
| Terminations / notes | Bolt-on; suitable for reverse-feed; terminals/lugs often supplied separately |
| Mounting | Fixed (panel/bus), MCCB |
| Dimensions (H × W × D) | 254 mm × 186 mm × 103.5 mm (10.00 in × 7.32 in × 4.07 in) |
| Weight | ≈ 7.4 kg (~16.3 lb) — fixed 4-pole S5N |
| Compliance | UL 489 • CSA C22.2 • IEC 60947-2 |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
