$394.85
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 200 A | 7" | 8" | 8" | 10 lbs |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 200 A |
| Length | 7" |
| Width | 8" |
| Height | 8" |
| Weight | 10 lbs |

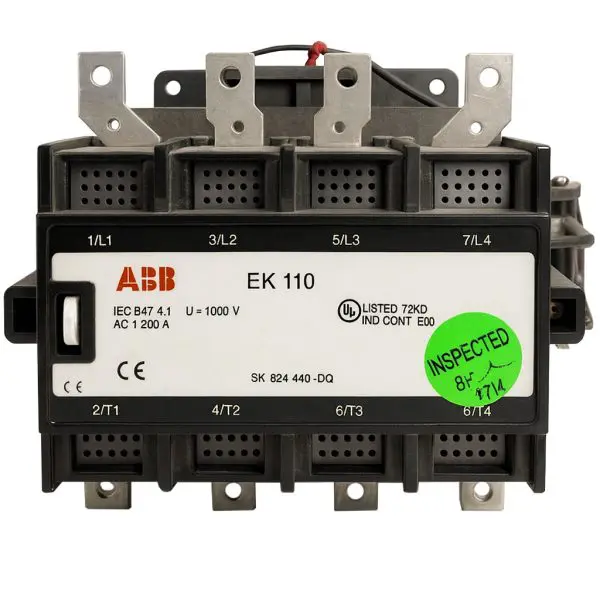

Genuine ABB EK-series 4-pole contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | EK110 (4-pole, 4 NO main; variants like EK110-40-11 include 1 NO + 1 NC aux) |
| Utilization category | AC-1 (distribution / general switching) |
| Rated operational current (Ie) | 200 A (AC-1) |
| Rated operational power (Pe) | N/A — 4-pole distribution (no AC-3 motor kW table) |
| Rated operational voltage (Ue) | Up to 690 V AC (IEC); UL up to 600 V |

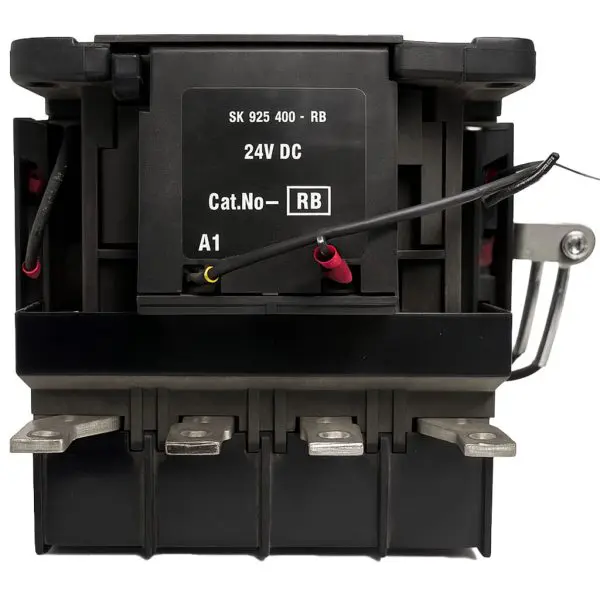

| Control circuit (coil) | AC or DC per variant; examples: 24 V DC (coil SK-825-400-RB) • 220–230 V 50 Hz (coil SK824440-AL) |

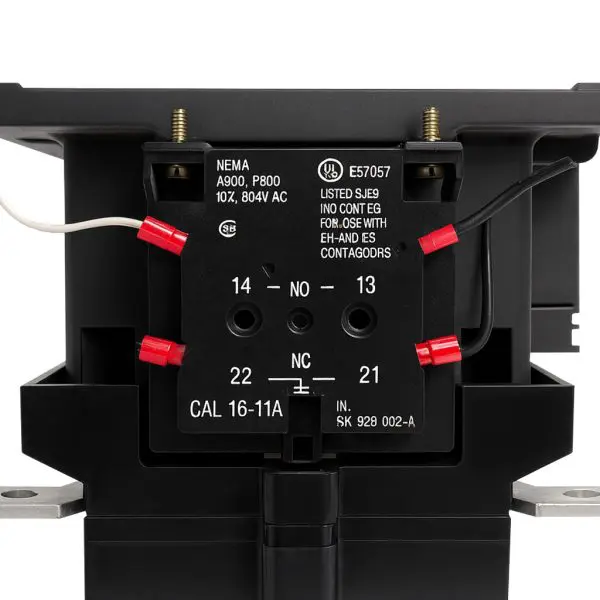

| Poles & auxiliaries | 4 main NO; add-on aux blocks optional / per suffix |
| Terminations | Screw / lug terminals (finger-safe housings) |
| Mounting | Panel mount |
| Dimensions (H × W × D) | 200 mm × 200 mm × 175 mm (7.87 in × 7.87 in × 6.89 in) |
| Weight | ≈ 4.3 kg (~9.5 lb) |
| Compliance | IEC 60947-4-1; UL up to 600 V |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
