$558.68
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 305 A | 7" | 7" | 8.15" | 20 lbs |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 305 A |
| Length | 7" |
| Width | 7" |
| Height | 8.15" |
| Weight | 20 lbs |

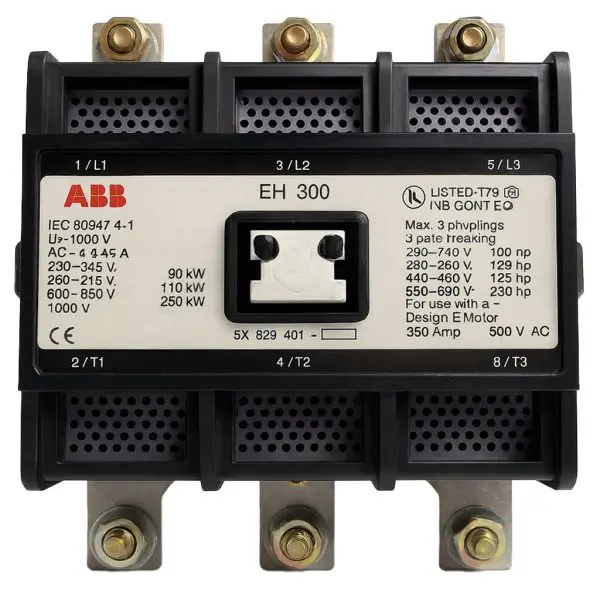

Genuine ABB EH-series contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | EH300 (typical aux builds: “-11”=1 NO + 1 NC, “-22”=2 NO + 2 NC) |
| Utilization category | Motor duty (UL/CSA & IEC) |
| Rated operational current (Ie) | 305 A (3-phase, up to 600 V AC) |
| Rated operational power (Pe) | UL motor HP: 100 HP @ 240 V • 250 HP @ 480/600 V |
| Rated operational voltage (Ue) | Up to 600 V AC (UL); up to 500 V DC (series data) |

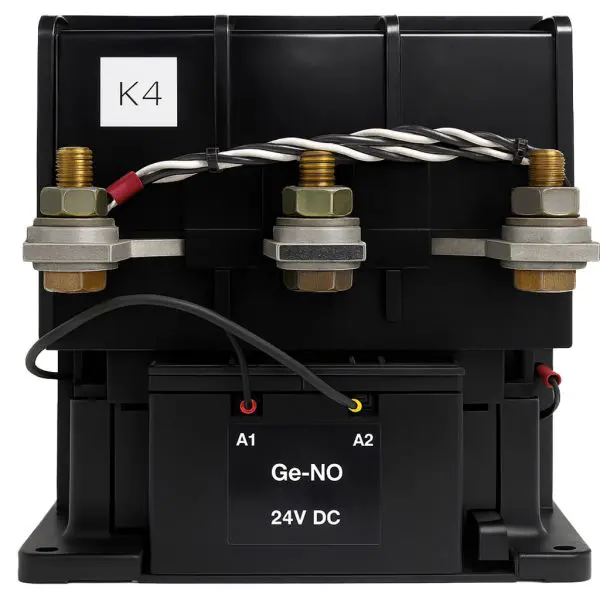

| Control circuit (coil) | AC coils (120 V AC common); DC variants available (e.g., 24 V DC) |

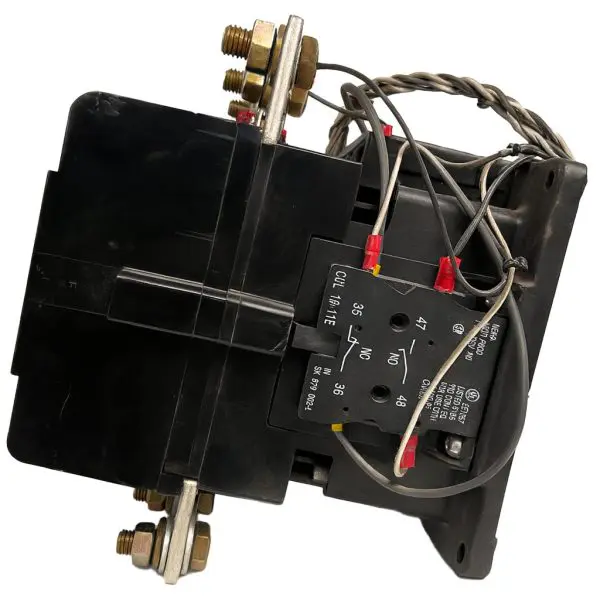

| Poles & auxiliaries | 3 main NO; auxiliaries per suffix |

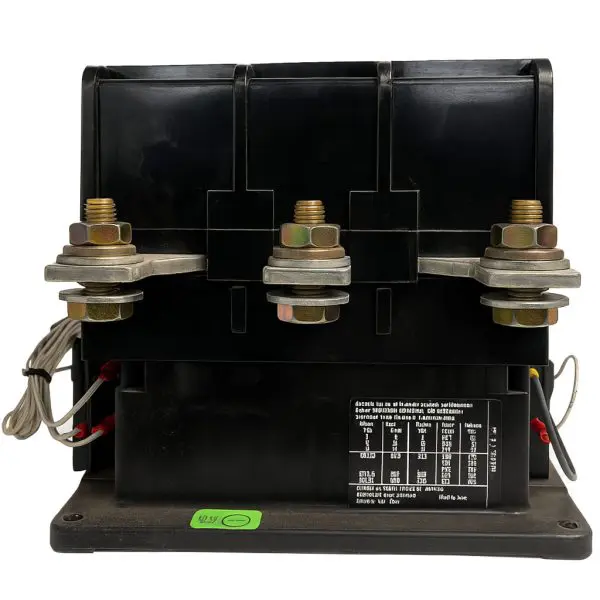

| Terminations | Supplied with lugs; clamp terminals IP20 (per series) |
| Mounting | Panel mount (EH300 frame) |
| Dimensions (H × W × D) | 207 mm × 176 mm × 175 mm (8.14 in × 6.92 in × 6.88 in) |
| Weight | ≈ 9.1 kg (~20 lb) |
| Compliance | UL/CSA; IEC 60947-4-1 (series) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
