UPS and CRAC Unit Filters

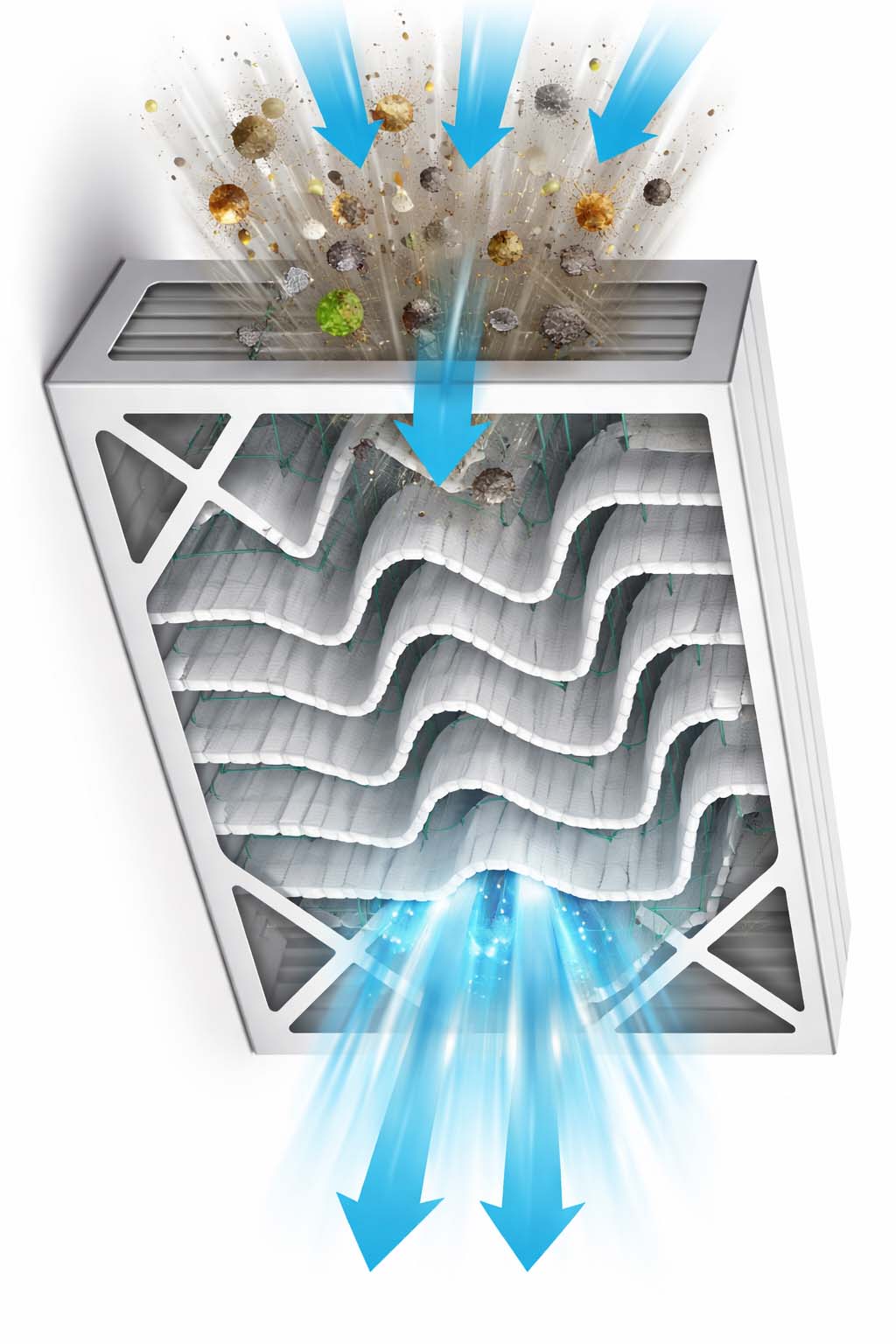

UPS Air Filters โ€” Compact Reference

Units are listed as inches first, with metric in parentheses; size format is H ร— W ร— T where T = thickness (depth).

Brand, UPS family/model, filter ID, size, media/type, and notes
Brand UPS family / model Filter part / kit Size (H ร— W ร— T) Media / type Qty / location & notes
Schneider Electric (APC) Galaxy VS (521ย mmโ€‘wide frames) GVSOPT001 23.6 ร— 19.5 ร— 0.7ย in (60 ร— 49.5 ร— 1.9ย cm) Kit: filter + gaskets + frame 1 kit per UPS (521ย mm chassis)

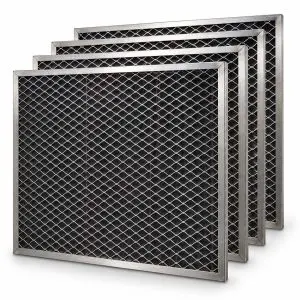

Schneider Electric (APC) Galaxy VM (Wide Power Cabinet) GVMDFWโ€‘KIT 4.72 ร— 15.35 ร— 9.45ย in (120 ร— 390 ร— 240ย mm) Dust filter kit Kit dimensions; includes filter(s) hardware
Schneider Electric (APC) Symmetra PX 250/500 SYOPT005 37.4 ร— 21.7 ร— 2.4ย in (95 ร— 55 ร— 6ย cm) Air filter assembly For PXย 250/500 frames
Eaton Power Xpert 9395 (225โ€“275ย kVA; Plusย 1 similar) โ€” (ISBM section filter) 12 ร— 20 ร— 0.25ย in (30.5 ร— 50.8 ร— 0.64ย cm) Foam (wash/replace) ISBM (bypass/section) filter(s) behind front panels
Eaton Power Xpert 9395 (225โ€“275ย kVA; Plusย 1 similar) โ€” (UPM section filter) 20 ร— 44 ร— 0.25ย in (50.8 ร— 111.8 ร— 0.64ย cm) Foam (wash/replace) UPM section filter(s) behind front panels
Eaton Power Xpert 9395P (e.g., 600ย kVA with FIโ€‘UPM) โ€” (FIโ€‘UPM filter) 20 ร— 44 ร— 0.25ย in (50.8 ร— 111.8 ร— 0.64ย cm) Foam FIโ€‘UPM cabinet filter size from installation manual
Vertiv (Liebert) NX 10โ€“30ย kVA โ€” (washable dust filter) 13.9 ร— 12.4 ร— N/Sย in (354 ร— 314 ร— N/Sย mm) Washable / reusable Filter behind front door; thickness not specified
Toshiba G9000 100ย kVA T90โ€‘AFโ€‘24ร—30ร—1 24 ร— 30 ร— 1ย in (61 ร— 76.2 ร— 2.54ย cm) OEM spec Qtyย 1 per UPS (per parts table)
Toshiba G9000 500ย kVA T90โ€‘AFโ€‘24ร—30ร—1 (left), T90โ€‘AFโ€‘20ร—30ร—1 (right) 24 ร— 30 ร— 1ย in; 20 ร— 30 ร— 1ย in OEM spec Two door filters (one each side)
Toshiba 4300 Series 30/50ย kVA (option) 64233 20 ร— 30 ร— 1ย in (50.8 ร— 76.2 ร— 2.54ย cm) MERVย 7 Optional door filters (per manual)

Notes

  • Orientation: sizes shown as H ร— W ร— thickness. โ€œDepthโ€ is the same as thickness.
  • Kits vs. bare media: items like GVSOPT001 and GVMDFWโ€‘KIT are assemblies (filter + frame/gaskets). Check your cabinet opening before ordering.
  • Model width variants: Galaxy VS has multiple cabinet widths (e.g., 350ย mm vs. 521ย mm); choose the matching filter kit.
  • Eaton 9395/9395P: foam filters sit behind front panels; some builds add a smaller ISBM filterโ€”verify your subโ€‘assembly.

CRAC Air Filters โ€” Compact Reference

CRAC Air Filters โ€” Brand, model, part number, size (H ร— W ร— T), media, and notes
Brand CRAC family / model Filter part / SKU Size (H ร— W ร— T) Media / efficiency Notes
Vertiv (Liebert) CRV (rowโ€‘based, 600ย mm cabinet) 196968P1 (MERVย 8); 196968P2 (MERVย 11) 32 ร— 18 ร— 4ย in Deepโ€‘pleated, 4โ€ณ; MERVย 8 or MERVย 11 Two filters per unit (600ย mm). OEM parts listing shows both sizes and MERV options. :contentReference[oaicite:0]{index=0}
Vertiv (Liebert) CRV (rowโ€‘based, 300ย mm cabinet) 315029P1 35.5 ร— 10 ร— 2ย in Pleated, 2โ€ณ (MERVย 8) Two per unit on 300ย mm cabinets; listed in the OEM CRV filter table. :contentReference[oaicite:1]{index=1}
Schneider Electric (APC) InRow (300ย mm) โ€” ACRC10x, ACRD10x/20x, ACSC10x, ACRC301x, ACRD301x W875โ€‘2010 4.8 ร— 38.8 ร— 13ย in (cartridge) Washable, ยฝโ€ณ Washable filter; units/qty by model (typically 2 per ACRC/ACRD, 1 per ACSC). Dimensions shown on distributor spec; model mapping from Schneider FAQ. :contentReference[oaicite:2]{index=2}
Schneider Electric (APC) InRow (300ย mm) โ€” ACRC/ACRD families W0B1657 4.8 ร— 38.8 ร— 13ย in (cartridge) Pleated, 2โ€ณ (listed as ~30%) Disposable pleated option for the same 300ย mm InRow units; dimensions from reseller tech sheet; model mapping from Schneider FAQ. :contentReference[oaicite:3]{index=3}
Vertiv (Liebert) DS (upflow/downflow), selected frames 178024P1S 25 ร— 16 ร— 4ย in MERVย 8, 4โ€ณ pleated OEM DS parts manual lists this filter; DS system design catalog shows typical sets combining 25ร—20 and 25ร—16 sizes by tonnage. :contentReference[oaicite:4]{index=4}
Vertiv (Liebert) DS (upflow/downflow), selected frames 180991P1 25 ร— 16 ร— 2ย in MERVย 7 (legacy rating), 2โ€ณ Listed in DS parts manual as a 2โ€ณ preโ€‘filter size for several DS models. :contentReference[oaicite:5]{index=5}
Vertiv (Liebert) DS (larger frames / variants) 195553P2 30.63 ร— 23.1 ร— 4ย in MERVย 8, 4โ€ณ pleated Replacement/OEMโ€‘spec listing for Liebert DS showing this larger nominal size. :contentReference[oaicite:6]{index=6}
Vertiv (Liebert) PDX / PCW (upflow) 316358P1 34 ร— 28 ร— 2ย in (nominal) MERVย 8, 2โ€ณ pleated Common Liebert 28ร—34ร—2 filter SKU used on many PDX/PCW upflow frames (check opening orientation). :contentReference[oaicite:7]{index=7}
Data Aire gForce (Rโ€‘410A family) โ€” (sizes by tonnage) Typical sets: 2ร— 20ร—25ร—4; 2ร— 20ร—20ร—4; 4ร— 16ร—25ร—4 (varies) MERVย 8, 4โ€ณ pleated Brochure shows 4โ€ณ MERVย 8 filters with size/quantity tables by configuration (upflow/downflow, kW). :contentReference[oaicite:8]{index=8}
Data Aire gForce / DAI parts (example) 193โ€‘416โ€‘254 16 ร— 25 ร— 4ย in MERVย 8, 4โ€ณ pleated Data Aire parts list shows 16ร—25ร—4 filter SKU used in multiple builds (example part shown). :contentReference[oaicite:9]{index=9}
STULZ CyberONEโ€‘EC (N/S in manual) 28.5 ร— 26 ร— 2ย in 2โ€ณ pleated, ~30% (Dustโ€‘Spot) Engineering manual states 2โ€ณ filters; nominal size 28.5โ€ณร—26โ€ณ (qty 1). :contentReference[oaicite:10]{index=10}
